The ultimate electronics package for swapping a BRZ or FRS with a 1UZ or 3UZ!

Take the guesswork out of what to buy, this bundle includes a harness, ECU and all the recommended sensors and accessories to make your install seamless and have full control and integration between chassis and engine.

This bundle includes the following:

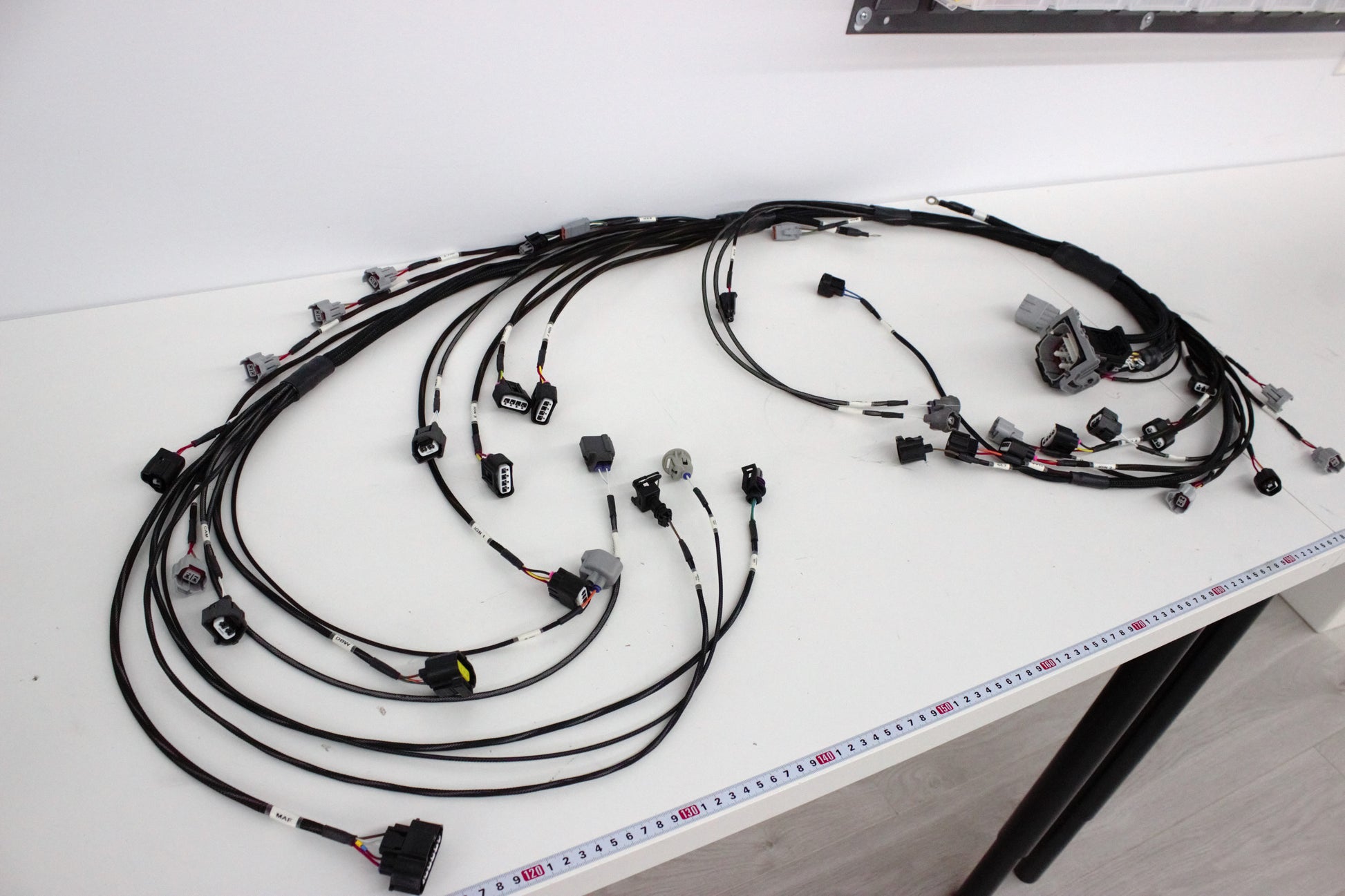

• GT86 UZ swap harness

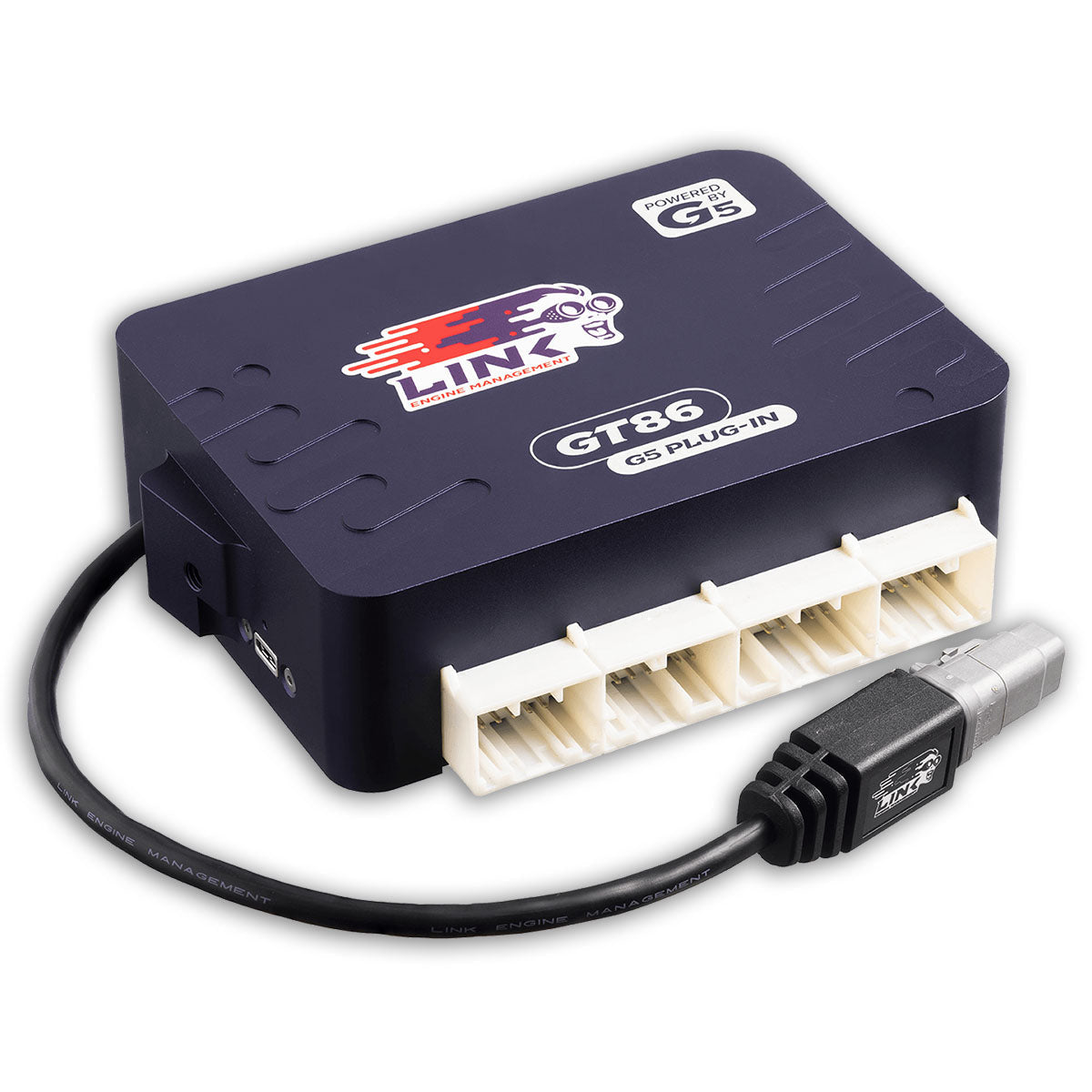

• Link G5 GT85 LHD ECU
• Link MAP sensor (1.15 Bar for naturally aspirated)
• Link IAT sensor DTM (Intake air temp)
• Link 150 psi sensor (fuel pressure)
• Combo oil/temp  (Oil pressure and temp) and M10x1 to 1/8 BSP adapter

• Link Lambda CAN x2 (dual CAN wideband controllers)

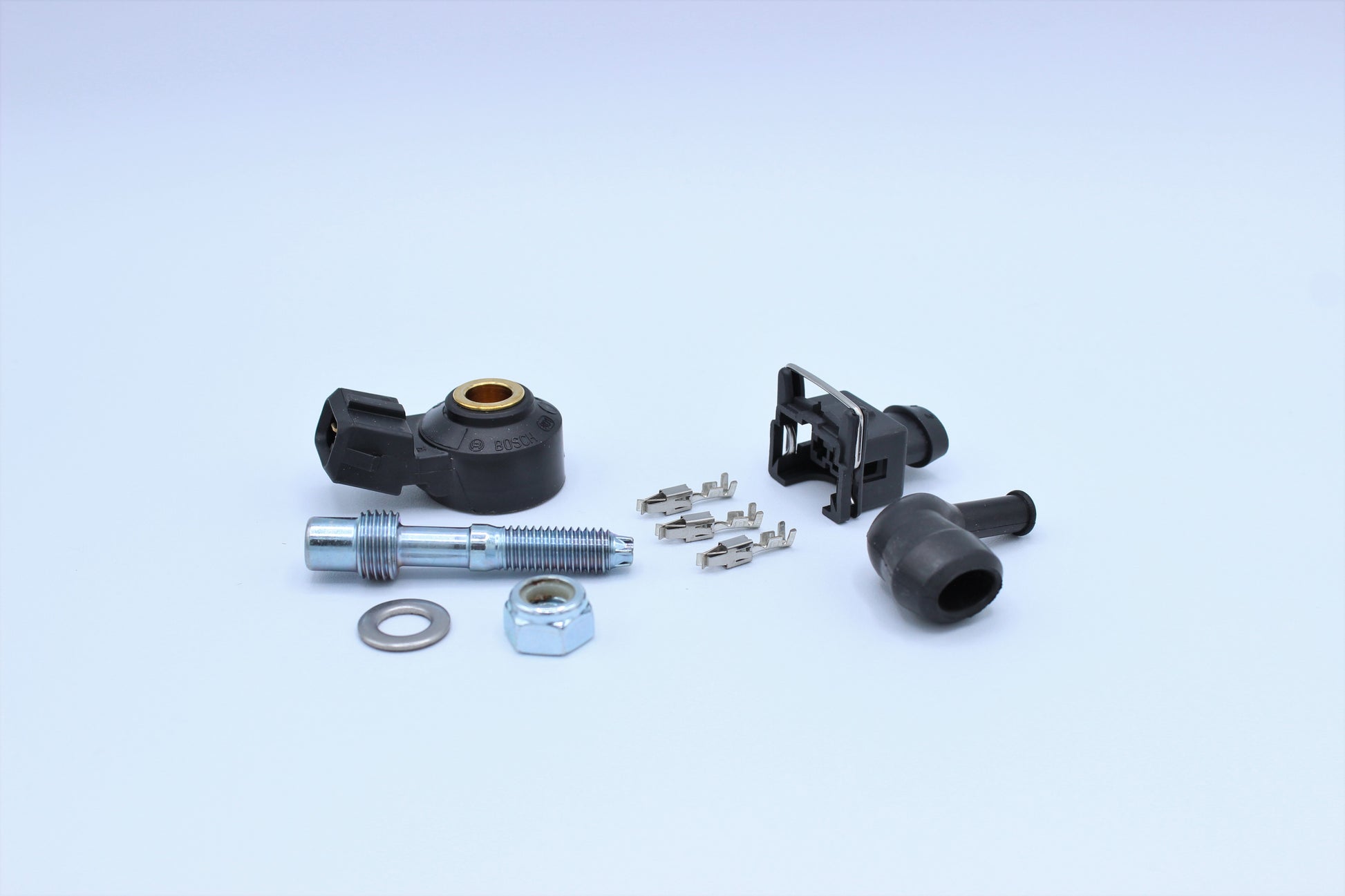

• Knock sensors with M12 adapters

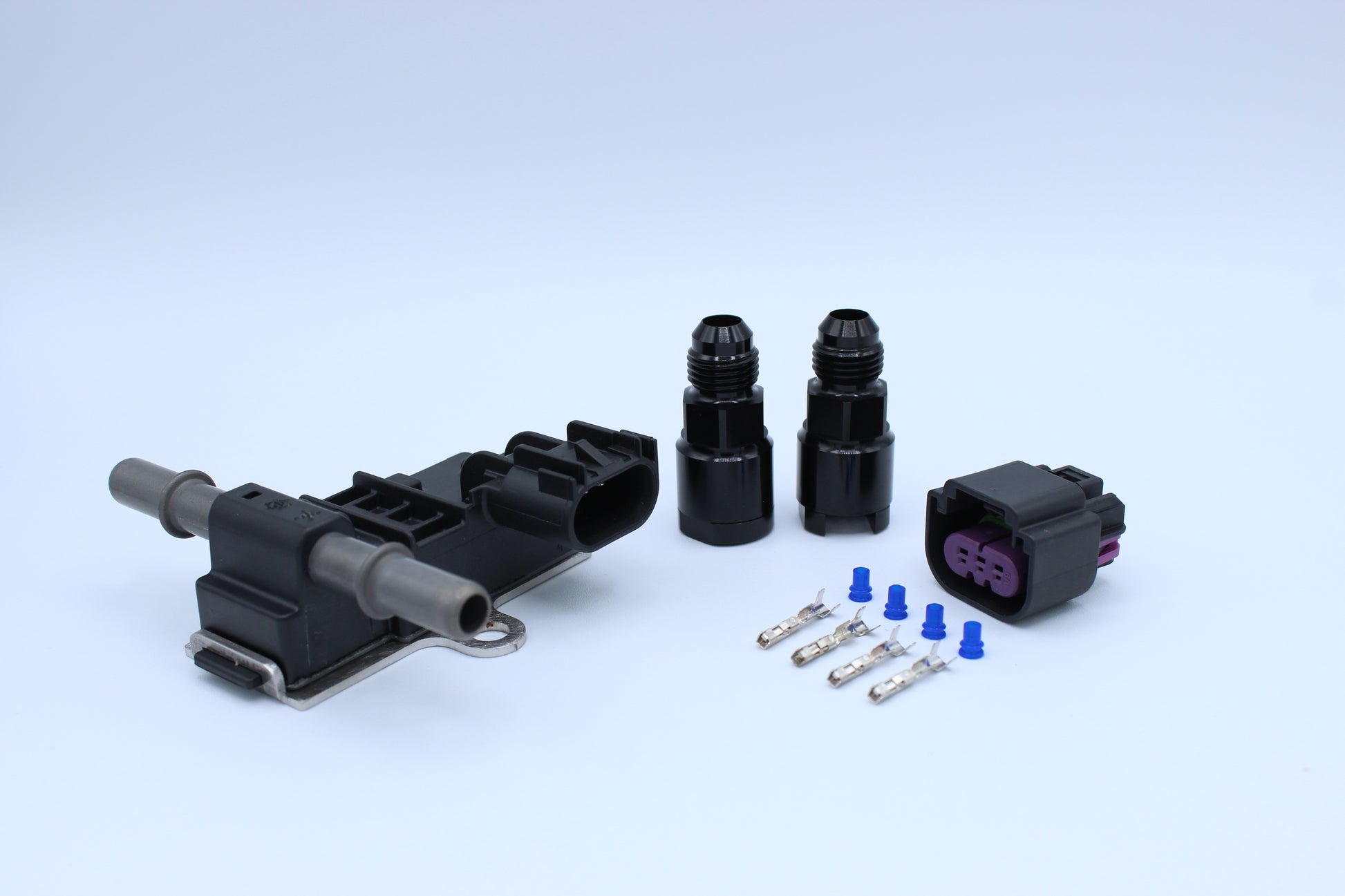

• Flex fuel sensor with -6 AN adapters

Developed with Collins Performance If you're swapping a 3UZ or 1UZ VVTi into a Toyota FRS or Subaru BRZ (The Toyobaru GT86 twins!) then this is the wiring solution for you!

Get full control, tunability, motorsport features like anti-lag and 2 step rev limiter, data logging and more all while retaining the OEM gauge cluster and body functions like ABS, and the push-to-start button. Link ECU's offer amazing flexibility and diagnostic functions making it a massive upgrade from a stock ECU.

Utilizing a Link G5 GT86 plug-in ECU this is a plug and play solution for the following Left hand drive Chassis':

• 2012 – 2021 Toyota 86, ZN6 LHD
• 2012 – 2021 Toyota GT86, ZN6 LHD
• 2012 – 2020 Subaru BRZ, ZC6 LHD
• 2012 – 2016 Scion FR-S LHD

And the following Toyota 1UZ-FE VVTi engines:

• 1997–2000 Lexus LS 400/Toyota Celsior
• 1997–2002 Toyota Crown/Toyota Crown Majesta

• 1997–2000 Lexus SC 400/Toyota Soarer
• 1997–1997 Toyota Aristo
• 1997–2000 Lexus GS 400


(Contact us if you're planning to use a Non-VVTi 1UZ-FE, this swap is best built around Drive-by-Wire throttle bodies and they can be converted)

And the following 3UZ-FE VVTi engines:

• 2000–2006 Lexus LS 430
• 2000–2007 Lexus GS 430
• 2001–2010 Lexus SC 430/Toyota Soarer
• 2004–2013 Toyota Crown Majesta

Check out Collins Performance Youtube page for more information about his UZ swap parts and to see our prototype in action!

This harness utilizes the following OEM parts on the engine/chassis but can be changed upon request and/or using the form linked below:

• Accelerator pedal
• Coolant temp sensor
• Crank and cam position sensors
• VVTi cam control system
• Intake VSV control solenoid

• Drive-by-Wire throttle body
• Starter
• Injectors (EV14 aftermarket injectors optional)
• Ignition coils
• Full integration with chassis including CAN Bus communications, Clutch switch input, Brake switch input, AC functions, Radiator Fan control, Starter control and cruise control switches
• Transmissions functions are contained in the OEM chassis harness and vehicle speed is read from the CAN Bus

The following sensors are not supported:

• OEM O2 sensors
• MAF sensor

To order use this form to select various sensor options and specifics around engine and chassis combinations. GT86 UZ Google Form

A start up basemap is supplied with each harness as well as full documentation for each connector/pinout.

Customizations are available upon request for an additional fee.

Each harness is built to order, please contact us for lead times.
